Diagram in momentum-position space p-q
Description
An analytical technique to analyze motion involves representing momentum as a function of the position of a moving object. This representation enables us to study how momentum evolves with respect to the achieved position.
The representation of motion in the momentum-position space p-q allows us to analyze the displacement's evolution, highlighting extremes in position and momentum.

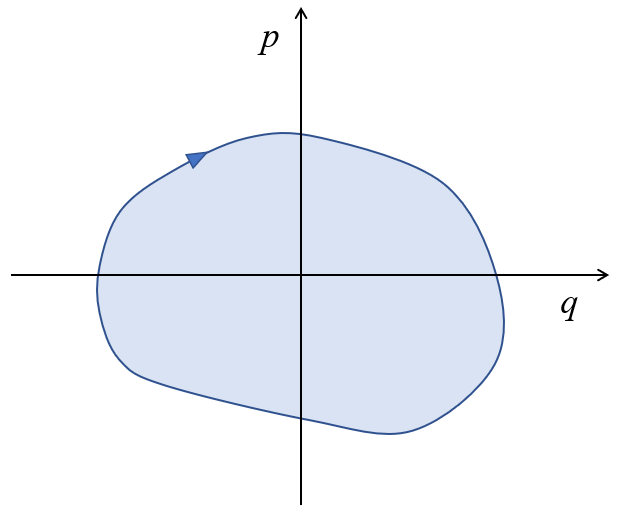

In the case of periodic motion or when considering the journey both ways, it can be represented as:
Furthermore, it's evident that the area enclosed by the curve
\displaystyle\int_{q_1}^{q_2} p dq = \displaystyle\int_{v_1}^{v_2} m v dv = \displaystyle\frac{1}{2} m v_2^2 - \displaystyle\frac{1}{2} m v_1^2
corresponds to the system's energy.
The area enclosed by the curve in the momentum-position diagram p-q corresponds to the system's energy.
ID:(1240, 0)
Phase space
Model
Variables
Calculations
to
,
then, select the variable:
to
Calculations
Variable
Given
Calculate
Target :
Equation
To be used
Equations
Given that the kinetic energy is
| K =\displaystyle\frac{ p ^2}{2 m_i } |
and the potential energy is
| V = - \displaystyle\frac{ G m_g M }{ r } |
we can express the energy with the radius denoted by the variable q as
| E_G = \displaystyle\frac{ p ^2}{2 m_i } - \displaystyle\frac{ G m_g M }{ q } |
In the case where the kinetic energy surpasses the potential energy at the starting radius and the energy is positive (indicating that the object can escape the planet), the equation can be written as
1 = \left(\displaystyle\frac{p}{\sqrt{2mE}}\right)^2 - \displaystyle\frac{GmM}{Eq}
which simplifies to
y=\pm\sqrt{1+\displaystyle\frac{1}{x}}
with
x=\displaystyle\frac{q}{GmM/E}
, and
y=\displaystyle\frac{p}{2mE}
In the case where the kinetic energy does not exceed the potential energy (indicating that the object cannot escape the planet's attraction), the energy is negative, and the expression is written as
1 = -\left(\displaystyle\frac{p}{\sqrt{2mE}}\right)^2 + \displaystyle\frac{GmM}{Eq}
where E is the absolute value of the energy. With the definitions of x and y, we then have
y=\pm\sqrt{\displaystyle\frac{1}{x}-1}
(ID 1185)
The kinetic energy as a function of momentum is given by
| K =\displaystyle\frac{ p ^2}{2 m_i } |
and the potential energy as a function of height is
| V =\displaystyle\frac{1}{2} k x ^2 |
So, if we express the elongation as the position
x = q
we obtain
| E_s =\displaystyle\frac{ p ^2}{2 m_i }+\displaystyle\frac{ k }{2} q ^2 |
(ID 1187)
Since kinetic energy is equal to
| K_t =\displaystyle\frac{1}{2} m_i v ^2 |
and momentum is
| p = m_i v |
we can express it as
K_t=\displaystyle\frac{1}{2} m_i v^2=\displaystyle\frac{1}{2} m_i \left(\displaystyle\frac{p}{m_i}\right)^2=\displaystyle\frac{p^2}{2m_i}
or
| K =\displaystyle\frac{ p ^2}{2 m_i } |
(ID 4425)
As the kinetic energy as a function of momentum is
| K =\displaystyle\frac{ p ^2}{2 m_i } |
and the potential energy as a function of height is
| V = - m_g g z |
so if the height is expressed as the position
h = q
we get
| E =\displaystyle\frac{ p ^2}{2 m_i }+ m_g g q |
(ID 4426)
Since in general, energy is the sum of kinetic energy
| K =\displaystyle\frac{ p ^2}{2 m_i } |
and potential energy
E=\displaystyle\frac{p^2}{2m}+U
If we solve for momentum, we get the following expression:
| p =\pm\sqrt{2 m ( E - U )} |
(ID 4429)
Examples
An analytical technique to analyze motion involves representing momentum as a function of the position of a moving object. This representation enables us to study how momentum evolves with respect to the achieved position.
The representation of motion in the momentum-position space p-q allows us to analyze the displacement's evolution, highlighting extremes in position and momentum.
In the case of periodic motion or when considering the journey both ways, it can be represented as:
Furthermore, it's evident that the area enclosed by the curve
\displaystyle\int_{q_1}^{q_2} p dq = \displaystyle\int_{v_1}^{v_2} m v dv = \displaystyle\frac{1}{2} m v_2^2 - \displaystyle\frac{1}{2} m v_1^2
corresponds to the system's energy.
The area enclosed by the curve in the momentum-position diagram p-q corresponds to the system's energy.
(ID 1240)
